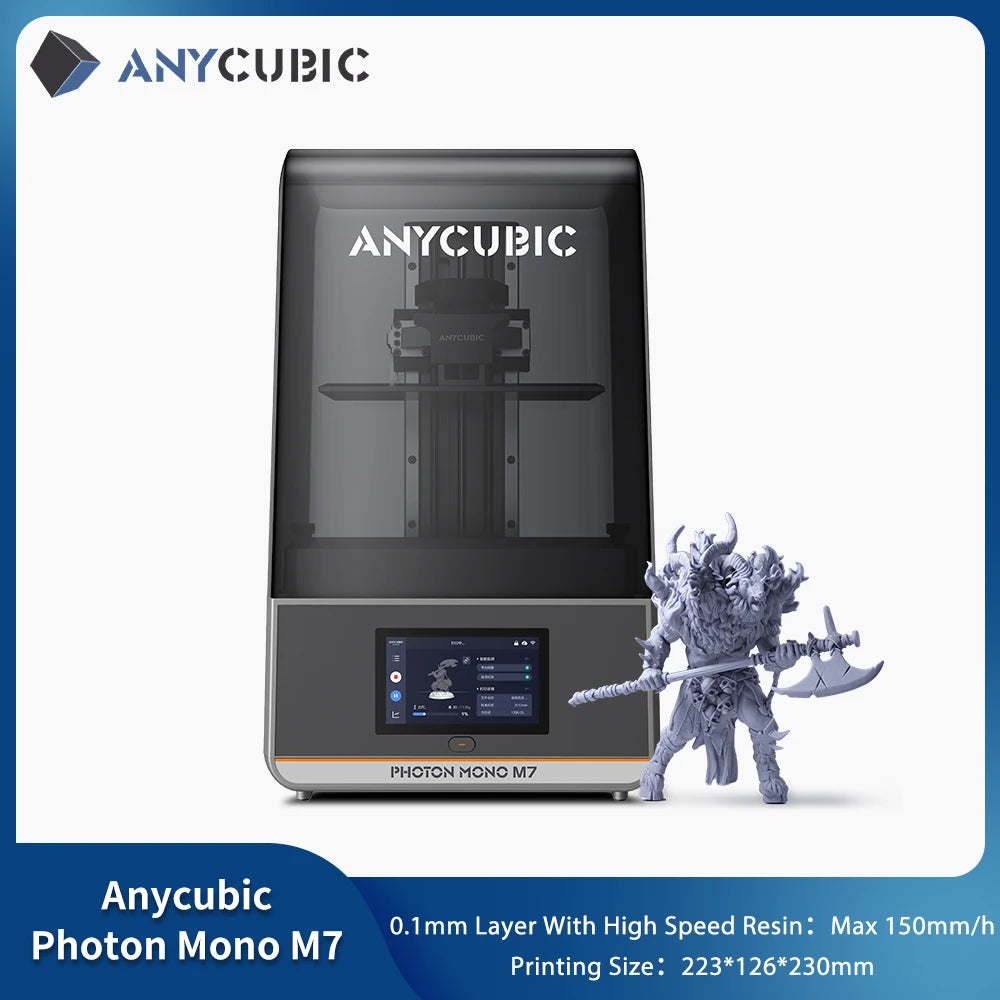

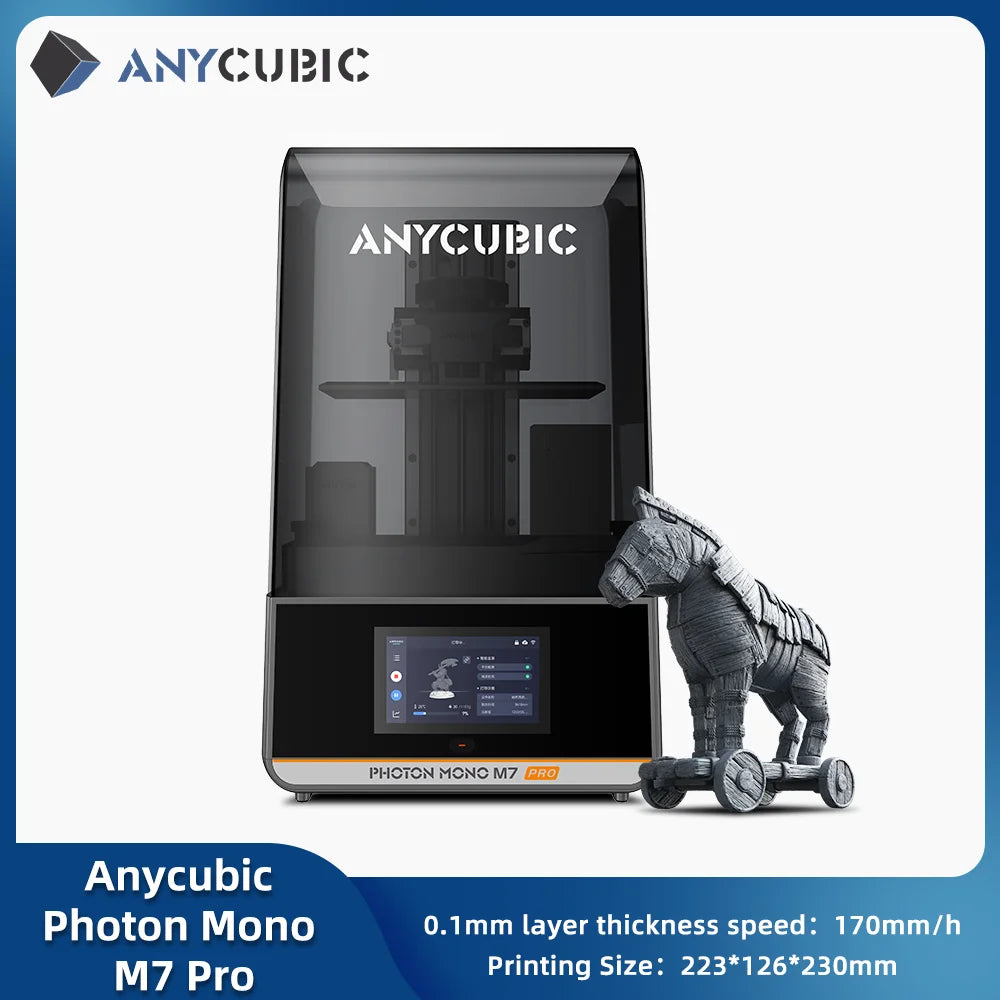

ANYCUBIC DLP SLA LCD 3D Printer High Speed UV Resin 3D Printer Wash Cure Machine Photon Mono M7, M7 Pro, M5s Pro , Photon P1
ANYCUBIC DLP SLA LCD 3D Printer High Speed UV Resin 3D Printer Wash Cure Machine Photon Mono M7, M7 Pro, M5s Pro , Photon P1
SPECIFICATIONS
Anycubic Photon Mono 4: Anycubic Photon Mono 4
Anycubic Photon Mono M5s: Anycubic Mono M5s
Anycubic Photon Mono M5s Pro: Anycubic Mono M5s Pro
Anycubic Photon Mono M7 Max: 7K Anycubic M7 Max

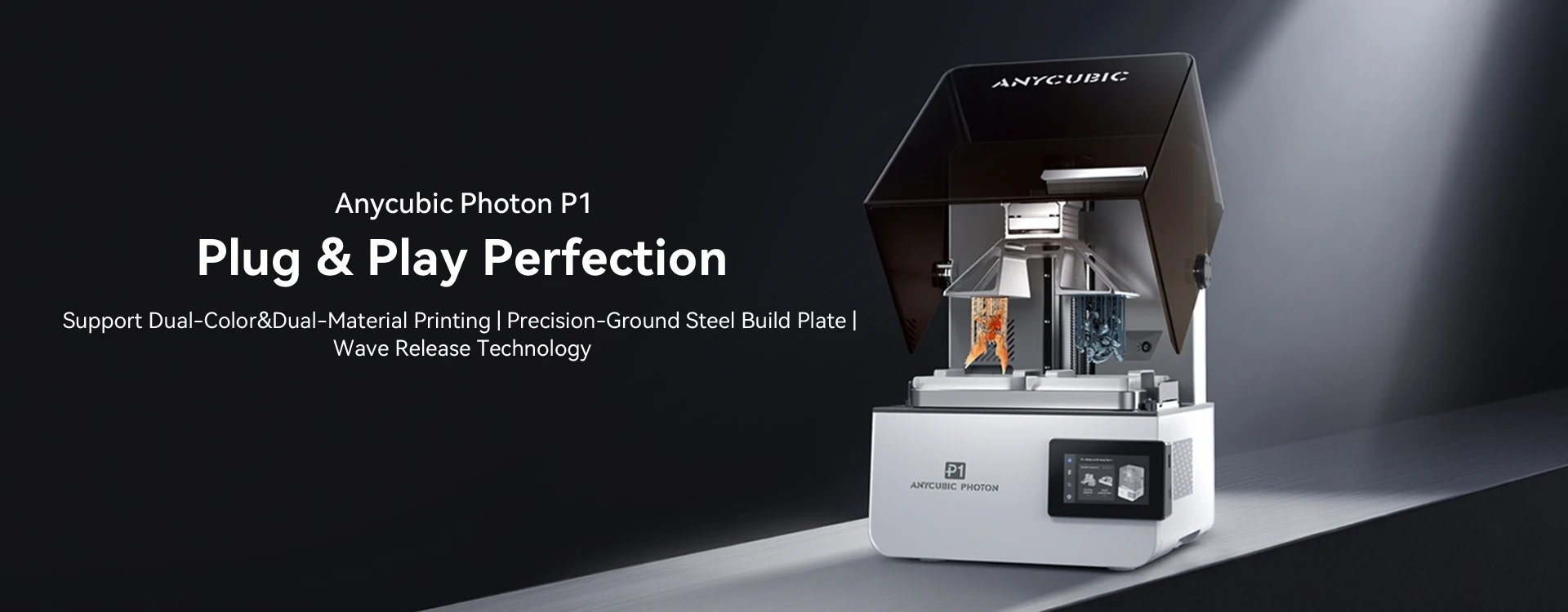

Anycubic Photon P1: Anycubic P1
Brand Name: ANYCUBIC
CE Certification: Yes
Certification: CE
Consumables Diameter: 405nm
DLP 3D Printer: Resin 3D Printer
Fliament: Resin
High-concerned chemical: None
Impresora 3d: 3D Printer
Interface Type: USB
Molding Technology: LCD
Photon Mono 4 Ultra: Photon Mono 4 Ultra
SLA 3D Printer: LCD 3D Printer
Slice Software: ANYCUBIC PHOTON workshop
Slice Thickness: 0.01 ~ 0.15mm
Warranty: One Year Warranty
Wireless Connectivity: None

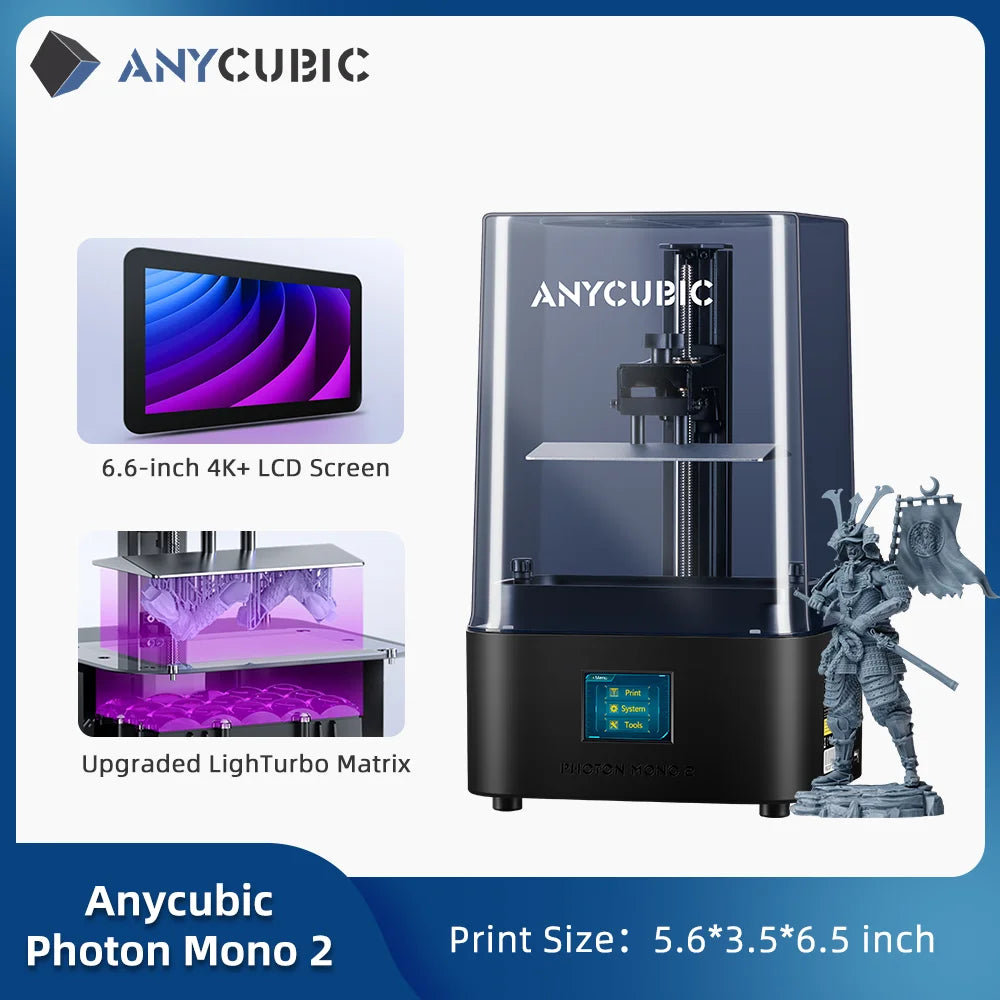

ANYCUBIC Photon Mono 2
The First Choice for Resin 3D Printing Beginner
6.6-inch 4K+ LCD Screen | 2.09L Print Volume | Upgraded LighTurbo Matrix
Printing accuracy: 4K+4,098 x 2,560 px
Contrast ratio: 300:1
Light transmittance3.5-4.5%
Light source: Parallel matrix (LED x 15)
Printing dimensions: 5.6 x 3.5 x 6.5 in.
Printing time: >1.5s / layer
Printing speed: 1.97 in./hr.
Machine leveling: Manual (4-point)
Power supply: 48W
ANYCUBIC Photon Mono X2
Following the Classics Unlimited Creativity
9.1" 4K HD Screen | Anycubic LightTurbo | Improved Speed & Stability
Exposure screen: 9.1'' monochrome
Printing accuracy: 4K+4,098 x 2,560 px
Contrast ratio: 200:1
Light transmittance: 5.0%
Light source: Parallel matrix (LED x 24)
Horizontal resolution: 48 μm
Printing dimensions: 7.8x7.7*5 in.
Printing time: 1.5-3s/ layer
Printing speed: 2.36 in./hr.
Machine leveling: Manual (4-point)
Power supply: 100W

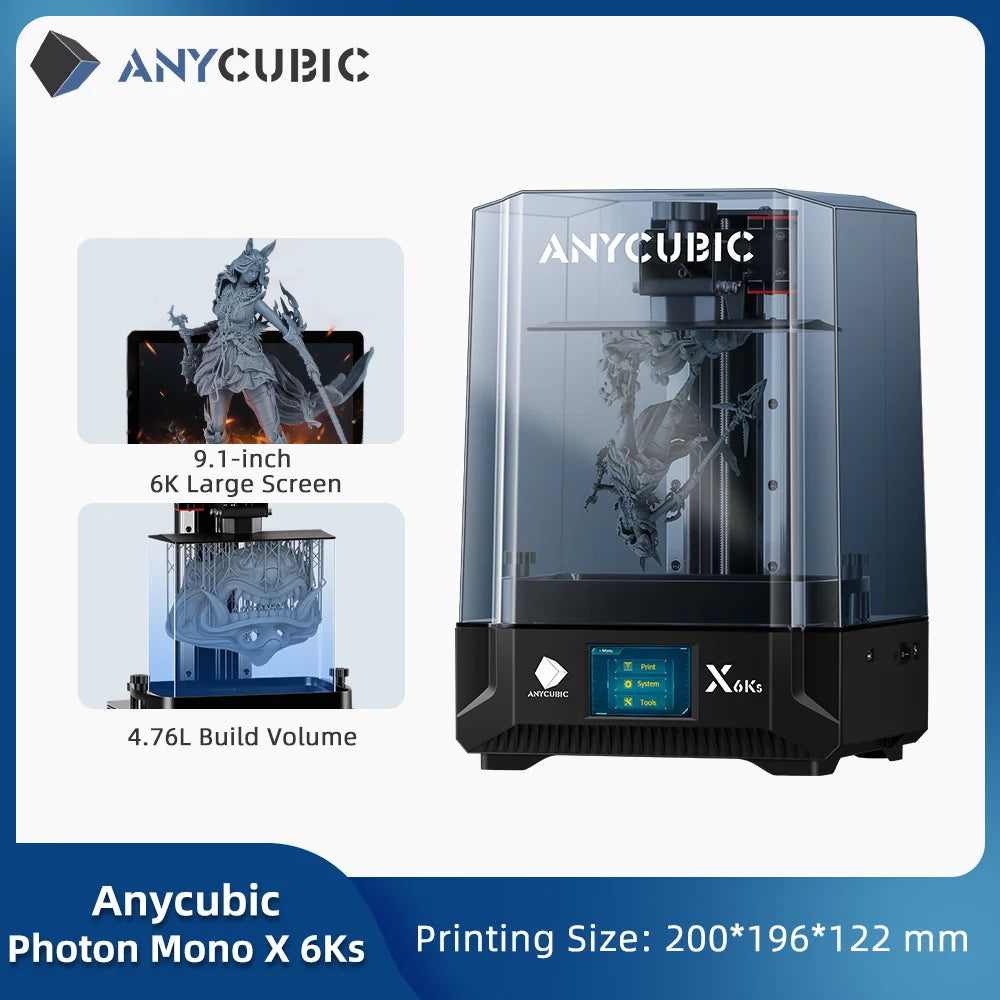

ANYCUBIC Photon Mono X 6Ks
6K and 9-inch Upgrade
9.1 inch 6K screen | 4.76L build volume | Upgraded LighTurbo Matrix
Exposure screen: 9.1'' monochrome
Printing accuracy: 6K5,760 x 3,600 px
Contrast ratio: 380：1
Light transmittance: 6.5%
Light source: Parallel matrix (LED x 24)
Horizontal resolution: 34 μm
Printing dimensions: 7.8 x 7.7 x 4.8 in.
Printing time: ≥1s / layer
Printing speed: 3.15 in./hr.
Machine leveling: Manual (4-point)
Power supply: 80W
ANYCUBIC Photon Mono M5
Details Always On
10.1 Inch 12K | Laser Carving Build Plate | Dual Lead Screw Linear Rails
Support App control
Exposure screen: 10.1'' monochrome
Printing accuracy: 12K 11520*5120
Contrast ratio: 480：1
Light transmittance: 4.7%
Light source: Parallel matrix (LED x 28)
Horizontal resolution: 19μm
Printing dimensions: 8.58 x 7.87 x 4.84 in.
Printing speed: 1.96 in./hr.
Machine leveling: Manual (4-point)
Power supply: 100W
ANYCUBIC Photon Mono M5s
Print Like a Master
10.1" 12K Screen | Leveling-Free | 3X Faster
Support App control
Machine leveling: Leveling-Free
Exposure screen: 10.1'' monochrome
Printing accuracy: 12K 11520x5120
Contrast ratio: 480: 1
Light transmittance: 4.7%
Light source: Parallel matrix (LED x 28)
Horizontal resolution: 19μm
Printing dimensions: 8.58 x 7.87 x 4.84 in.
Printing speed: With high speed Resin：4.13 in./hr, With general resin：2.76 in./hr"
Power supply: 100W
ANYCUBIC Photon Mono M5s Pro
Pioneer of 14K
10.1-inch 14K HD Screen | Air Heater & Purification | High Speed
Support App control
Machine leveling: Leveling-Free
Exposure screen: 10.1'' monochrome
Printing accuracy: 14K 13312*5120 px
Printing Volume: 200oz. / 5.7L
Machine Weight: 9.4lb./ 20.7kg
Printing dimensions: 223.78 x 126.38 x 200mm/
8.81 x 4.98 x 7.87in.(LWH)
Printing speed: 0.1 layer thickness 105mm/h, 0.15 layer thickness 150mm/h
Power supply: 110W

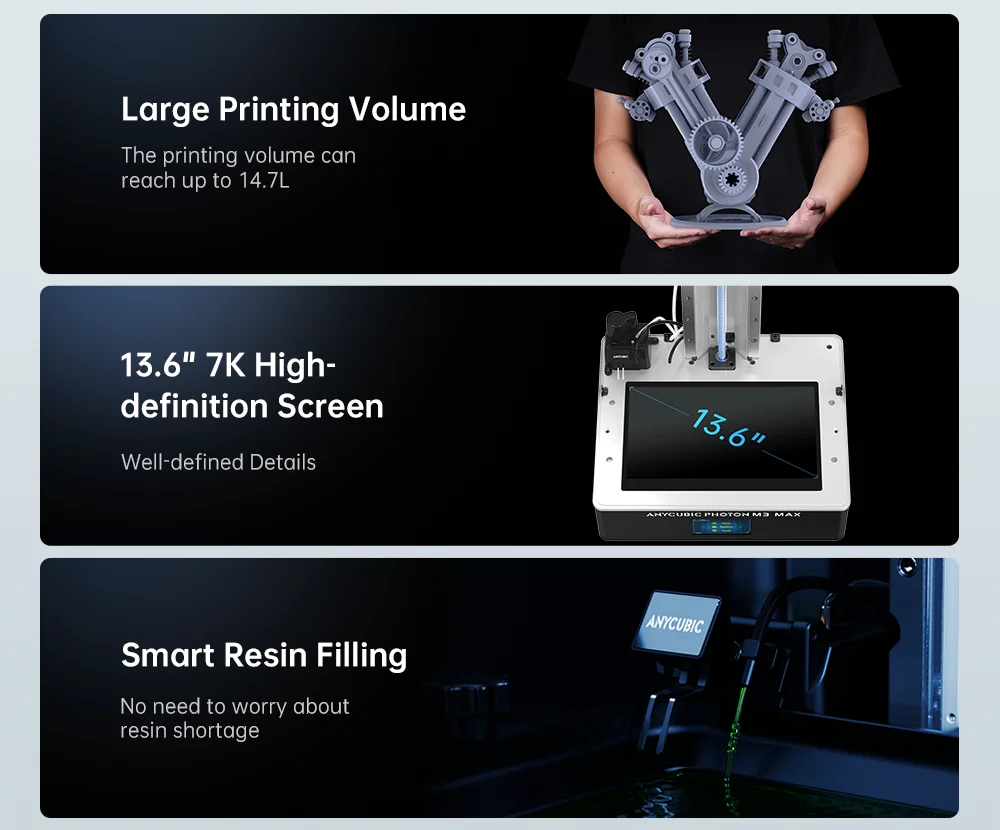

ANYCUBIC Photon M3 Max
Large and Extraordinary
14.7L Large Print Volume | 13" 7K Monochrome Screen | Anycubic Auto Resin Filler
Support Automatic feeding
Exposure screen: 13.6'' monochrome
Printing accuracy: 7K6,480 x 3,600 px
Contrast ratio: 450:1
Light transmittance: 5-6%
Light source: Parallel matrix (LED x 84)
Horizontal resolution: 46 μm
Printing dimensions: 11.8 x 11.7 x 6.5 in.
Printing time: ≥1.5s / layer
Printing speed: 2.36 in./hr.
Machine leveling: Manual (4-point)
Power supply: 120W

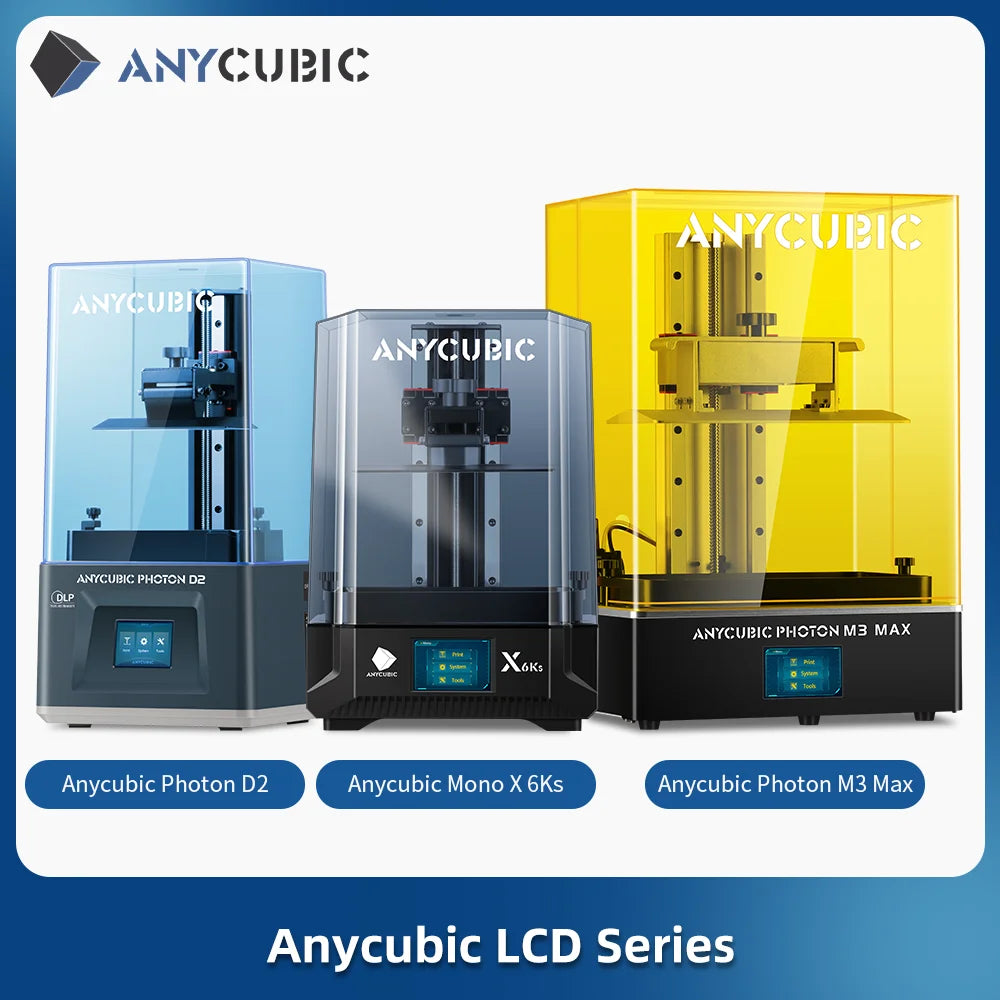

ANYCUBIC Photon D2
One Step Forward
DLP®| High Precision| Premium Experience
Exposure screen: 5.9'' monochrome
Printing accuracy: 2K2,560 x 1,440 px
Contrast ratio: 1000:1
Light source: DLP
Horizontal resolution: 51 μm
Printing dimensions: 6.5 x 5.1 x 2.9 in.
Printing time: ≥2.5s / layer
Printing speed: 1.96 in./hr.
Machine leveling: Manual (4-point)
Power supply: 15W
ANYCUBIC Photon Mono 4
Beginning is Stunning
7-inch 10K High-Definition Screen |2.2L Maximum Print Volume | LighTurbo Light Sourcing System
Exposure screen: 7" High-Definition Screen
Printing accuracy: 10K+9024 x 5120 px
Light source: Parallel matrix upgrade Light Source
Printing dimensions: 6.0 x 3.4 x 6.5 in.
Product Dimensions：9.1 x 9.3 x 15.4 in.
Printing speed: ≤2.76 in./hr.
Machine leveling: Manual (4-point)
Slicing software：Photon Workshop
File Transfer：USB
Maximum print volume：2.2L
Net Weight：4KG

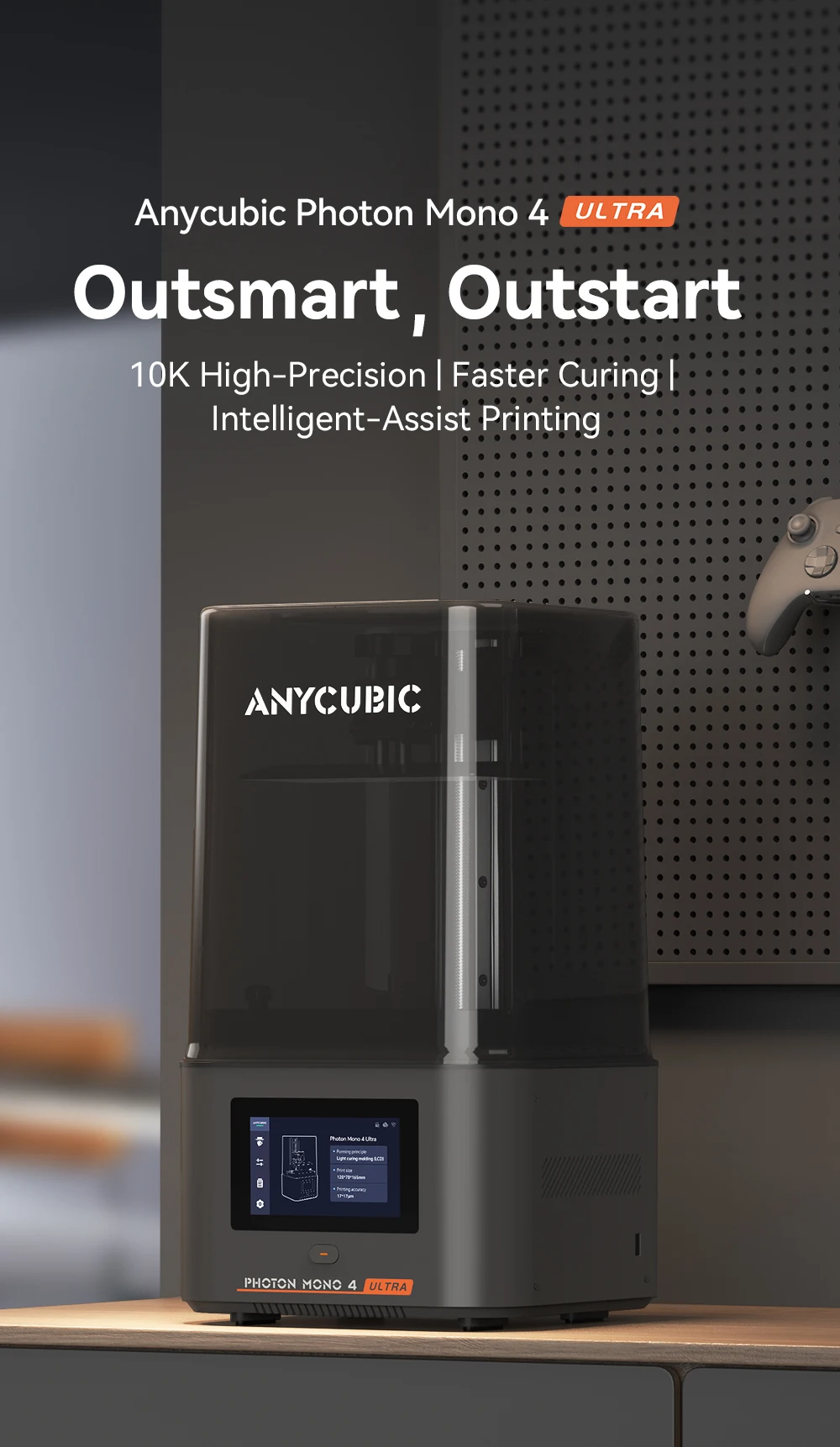

ANYCUBIC Photon Mono 4 Ultra
Outsmart, Outstart
10K High-Precision | Faster Curing | Intelligent-Assist Printing
●Z Axis：Single liner with 20μm accuracy
● Build Platform: Laser engraving aluminum alloy
● Exposure Screen: 7" monochrome
●LCD Resolution：10K (9024*5120px)
● Light Source: COB Light Source and Fresnel Lens and Factory Algorithm Calibration
● Control Panel: 4.3" TFT touch-control
● Data Input: USB-A 2.0, WIFI
● Machine Leveling: 4-point manual leveling
● Printing Speed 1: 80mm/h peek speed(Standard Resin 0.1mm layer height)
● Printing Spee2: 120mm/h peek speed(High Speed Resin 0.1mm layer height)
● Printing Dimensions: 6.04*3.42*6.48in./153.4*87.*165mm (HWD)
● Product Dimensions:236mm*231mm*430mm/ 9.29*9.09*16.93in.(HWD)
● Machine Weight: 5KG/11lb.
●Maximum print volume：2.2L/74.4oz.
Wash and Cure 3
Cleaning Size(With platform): 165*100*165mm/ 6.5*3.9*6.5 inch
Maximum Cleaning Size(Without platform): 165*100*180mm/ 6.5*3.9*7.1 inch
Maximum Curing Size: φ160*180mm/ φ6.2*7.08 inch
Machine size: 216*217*310 mm/ 8.5*8.5*12.2 Inches (L*W*H)
Machine Weight: 2.7 kg/ 5.9 lbs
Suitable Model: Photon Mono 2/ Photon D2
Wash and Cure 3 Plus
Cleaning Size(With platform): 228*128*250 mm/ 6.5*5.0*9.8 inches
Maximum Cleaning Size(Without platform): 228*128*260 mm/ 6.5*5.0*10.2 inches
Maximum Curing Size: φ220*260mm/ φ8.7*10.2 inch
Machine size: 312*267*434mm/ 12.3*13.8*17.1 inches (L*W*H)
Machine Weight: 5.7 Kg/ 12.6 lbs
Suitable Model: Photon Mono X2/ X 6Ks/ M5/ M5s
Wash and Cure Max
Washing and Curing Size: 300*165*300mm/ 11.8*6.5*11.8 inches (LWH)
Machine size: 434*434*556mm/ 17.1*17.1*21.9 inches (LWH)
Machine Weight: 13.5 kg / 29 lbs
Suitable Model: Photon M3 Max
