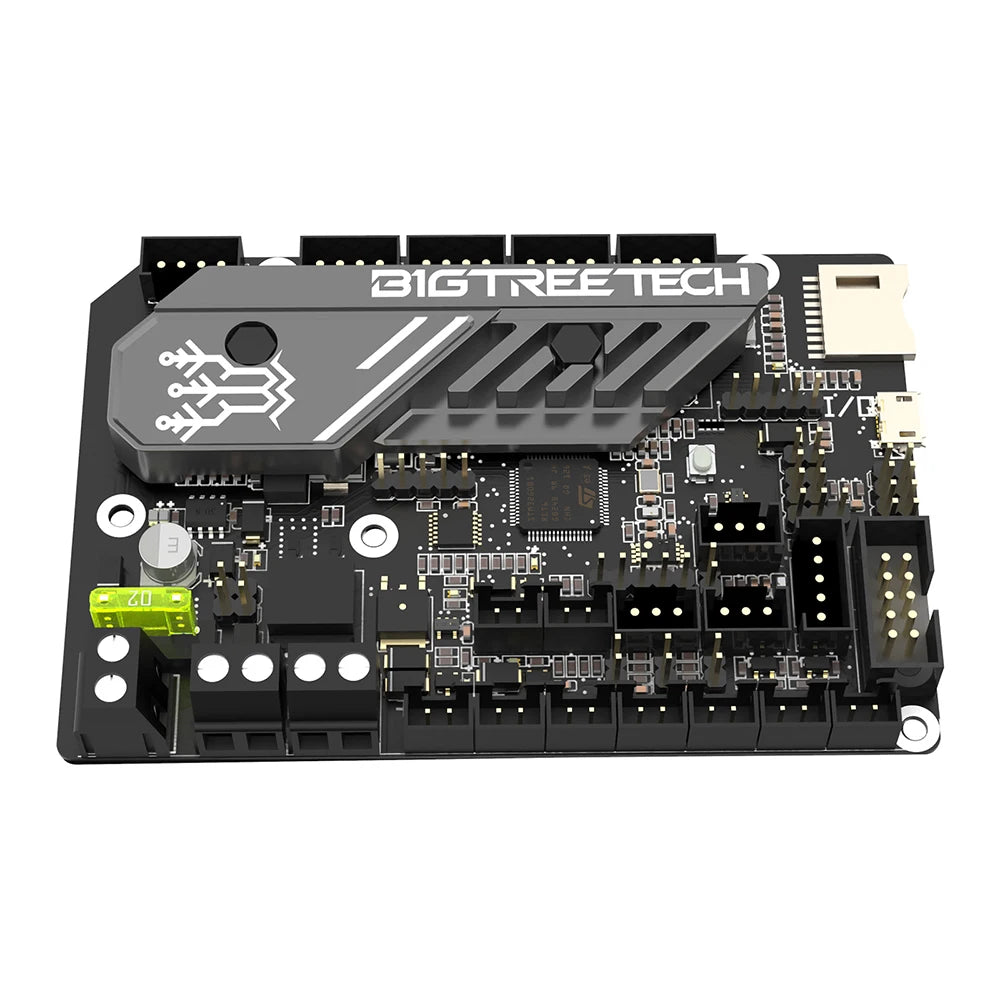

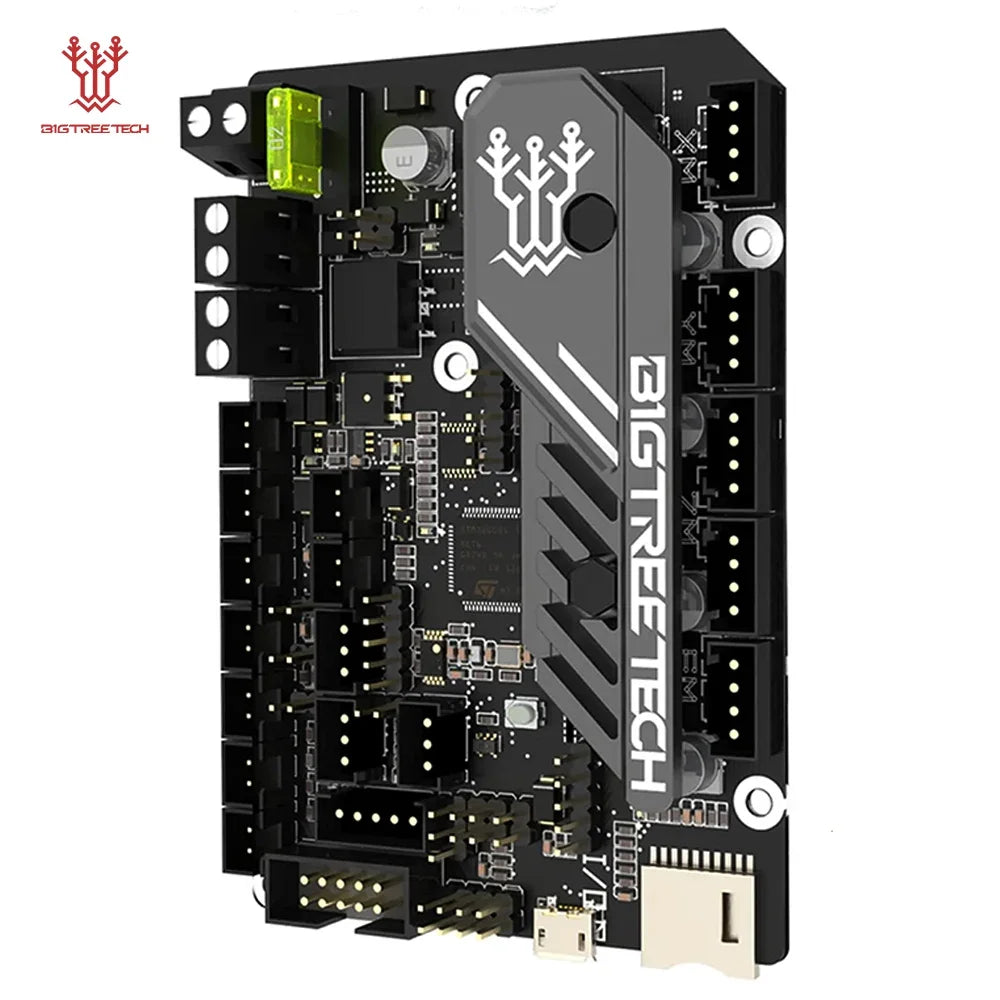

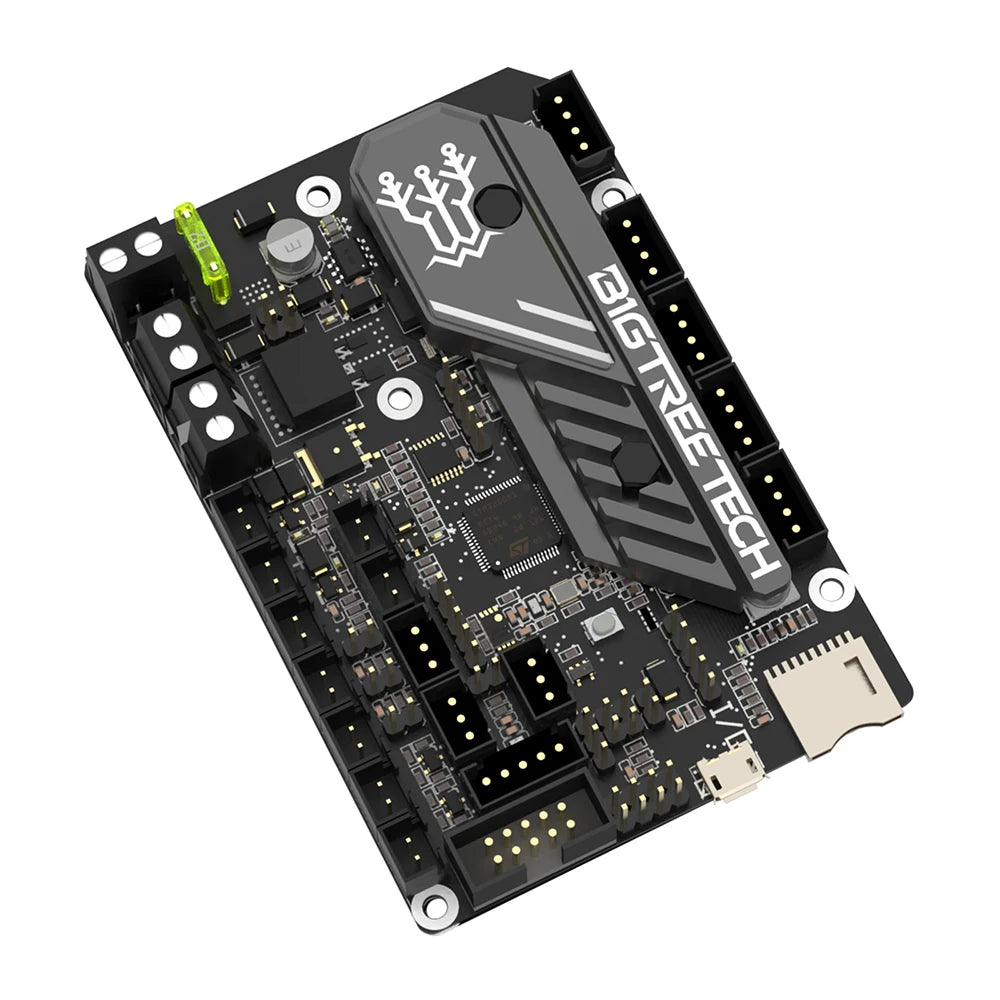

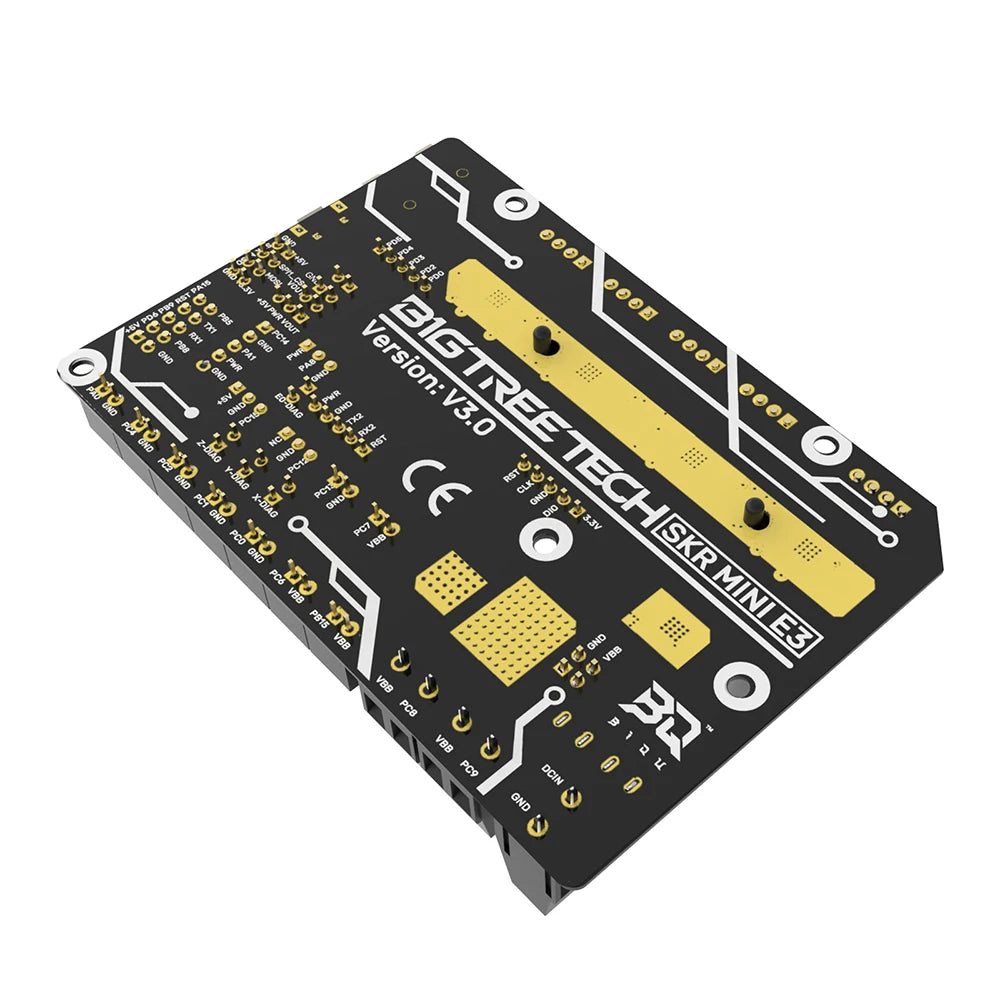

BIGTREETECH SKR MINI E3 V3.0 32 Bit Motherboard Onboard TMC2209 For Raspberry Pi Ender3 Ender5 CR10 3D Printer TFT35 E3 V3.0
BIGTREETECH SKR MINI E3 V3.0 32 Bit Motherboard Onboard TMC2209 For Raspberry Pi Ender3 Ender5 CR10 3D Printer TFT35 E3 V3.0
SPECIFICATIONS

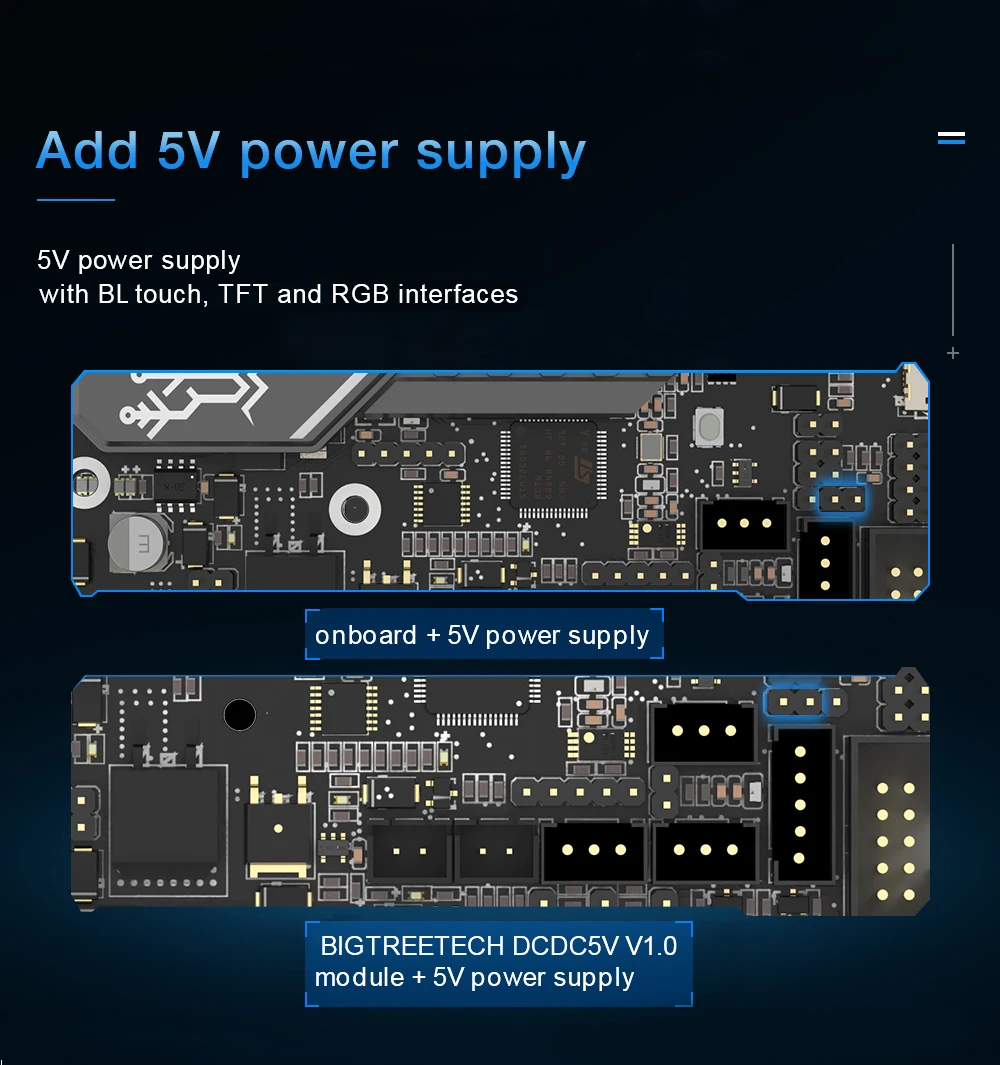

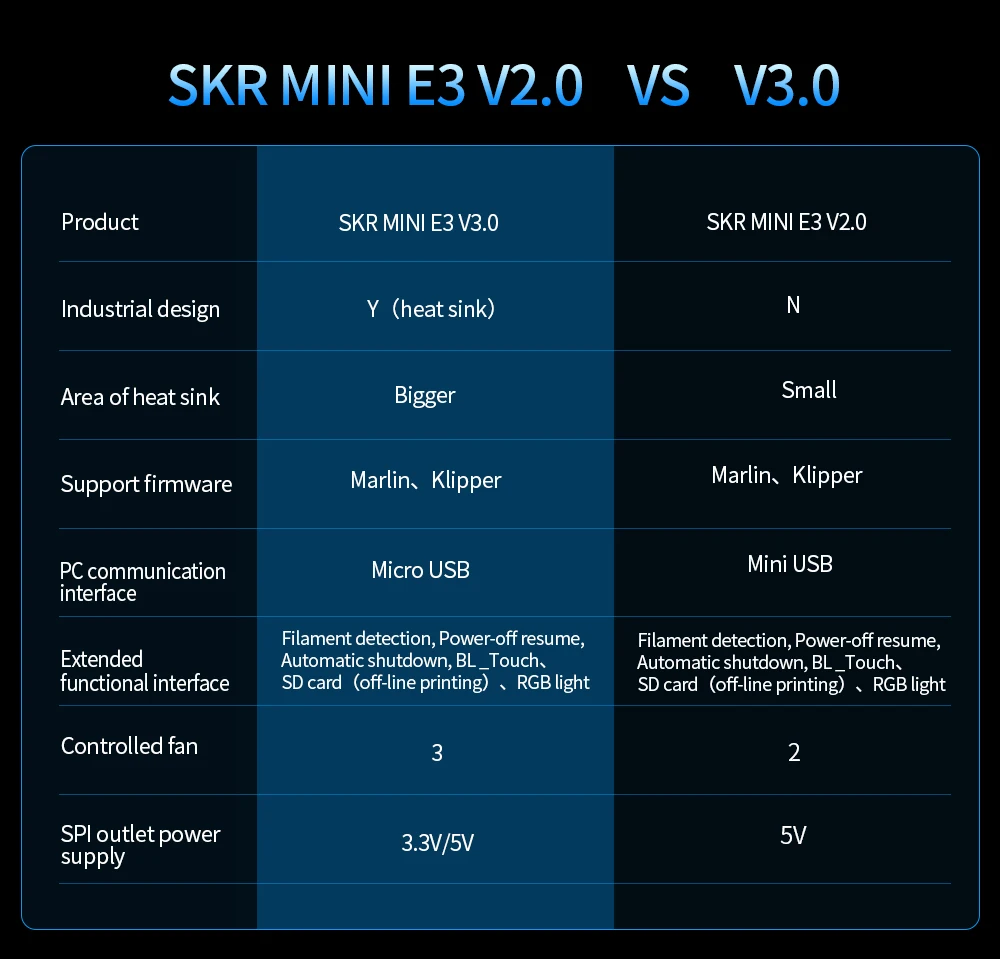

Add 5V power supply: 5V power supply with BL touch,TFT and RGB interfaces
Area of heat sink: Bigger

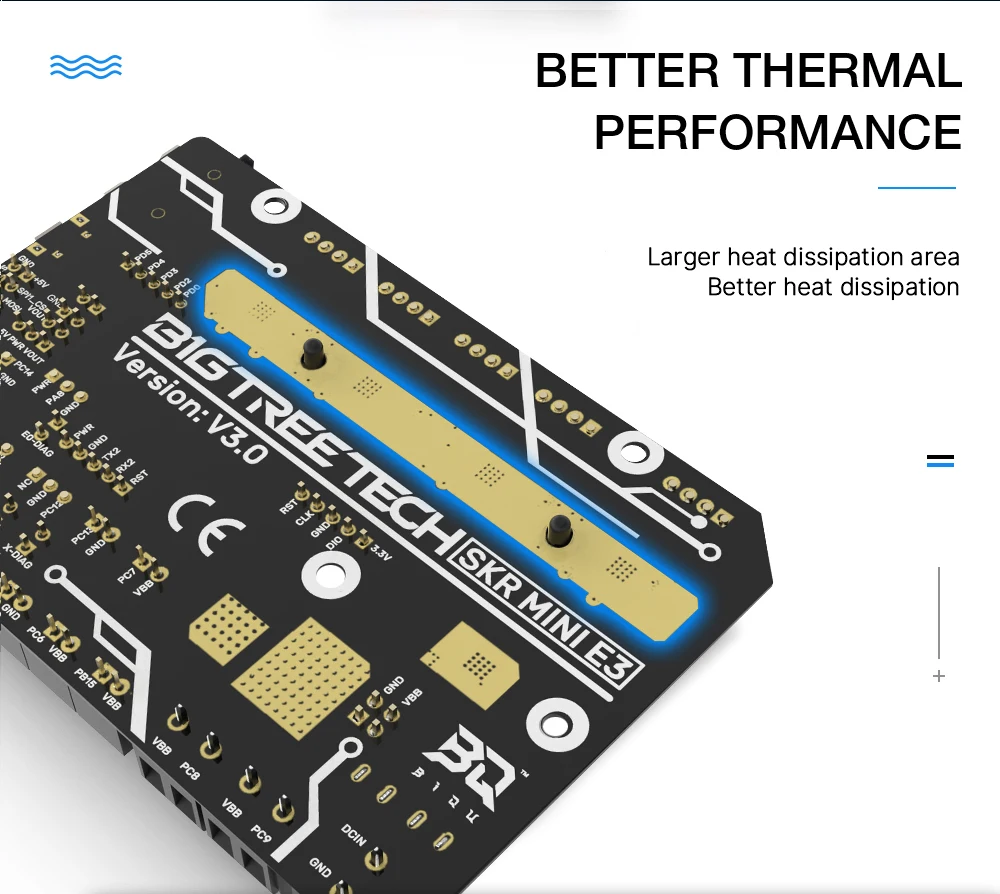

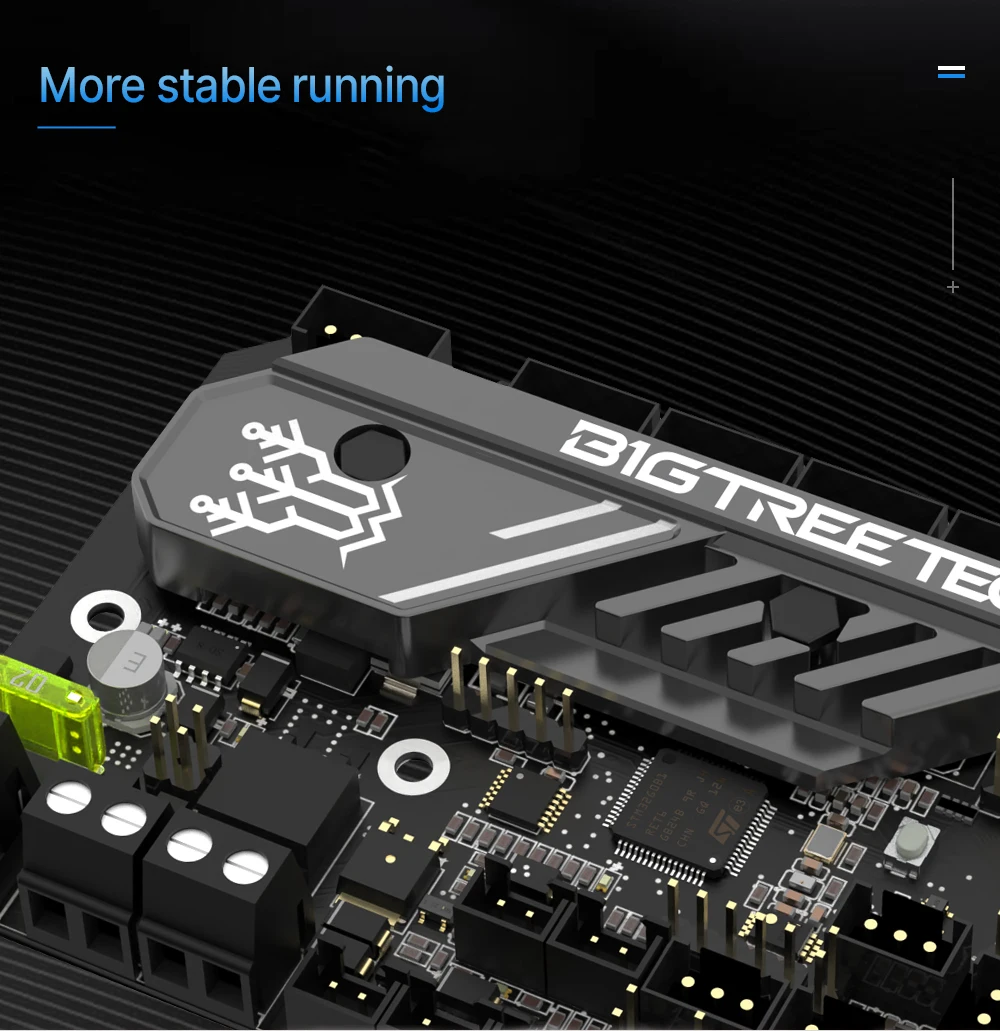

BETTER THERMAL PERFORMANCE: Larger heat dissipation area Better heat dissipation
Better protection and safety design: Better protection and safety design
Board Layer: 4
Brand Name: BIGTREETECH

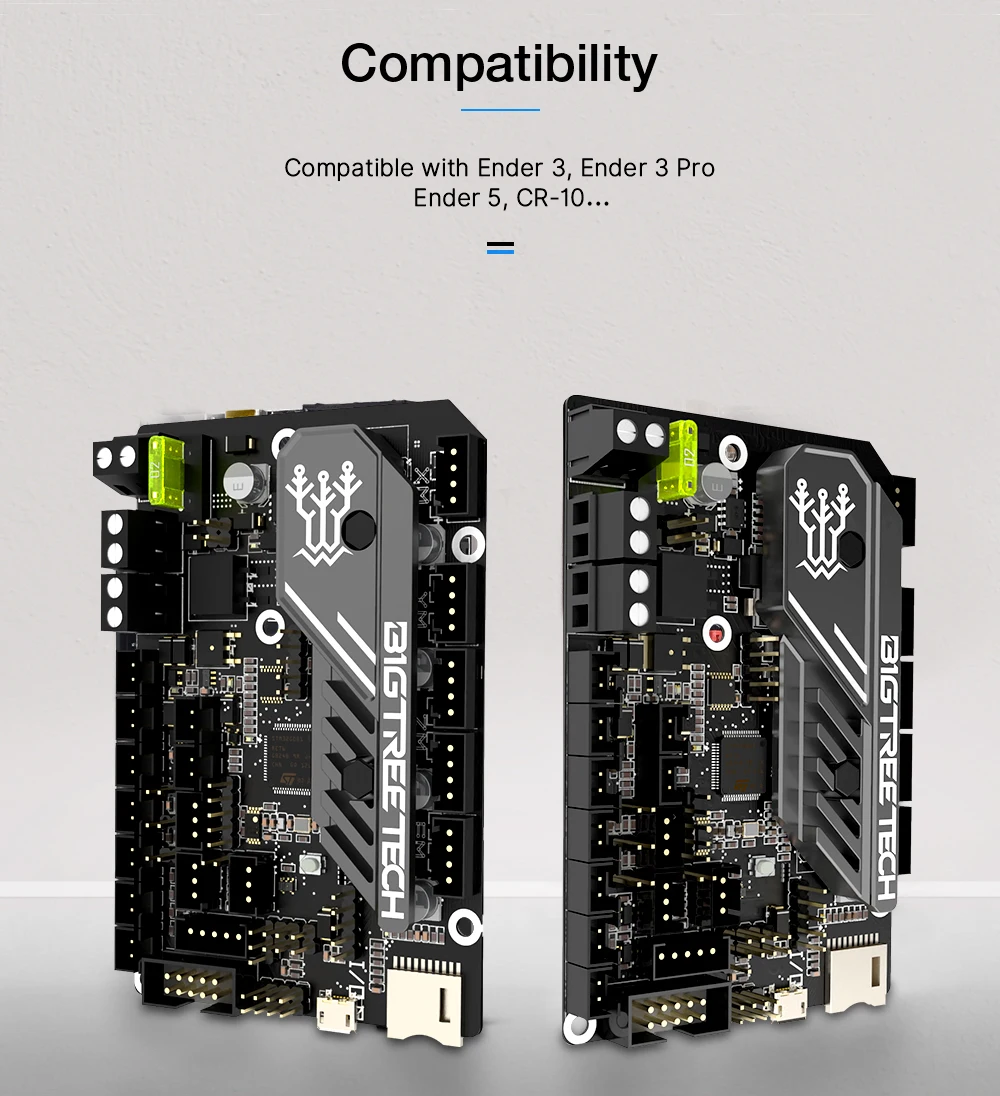

Compatibility: Ender 3,Ender 3 Pro,Ender 5,CR 10
Controlled fan: 3
Display Screen: 2.4-inch TFT,3.5-inch TFT,Ender3 original LCD12864 screen,etc.

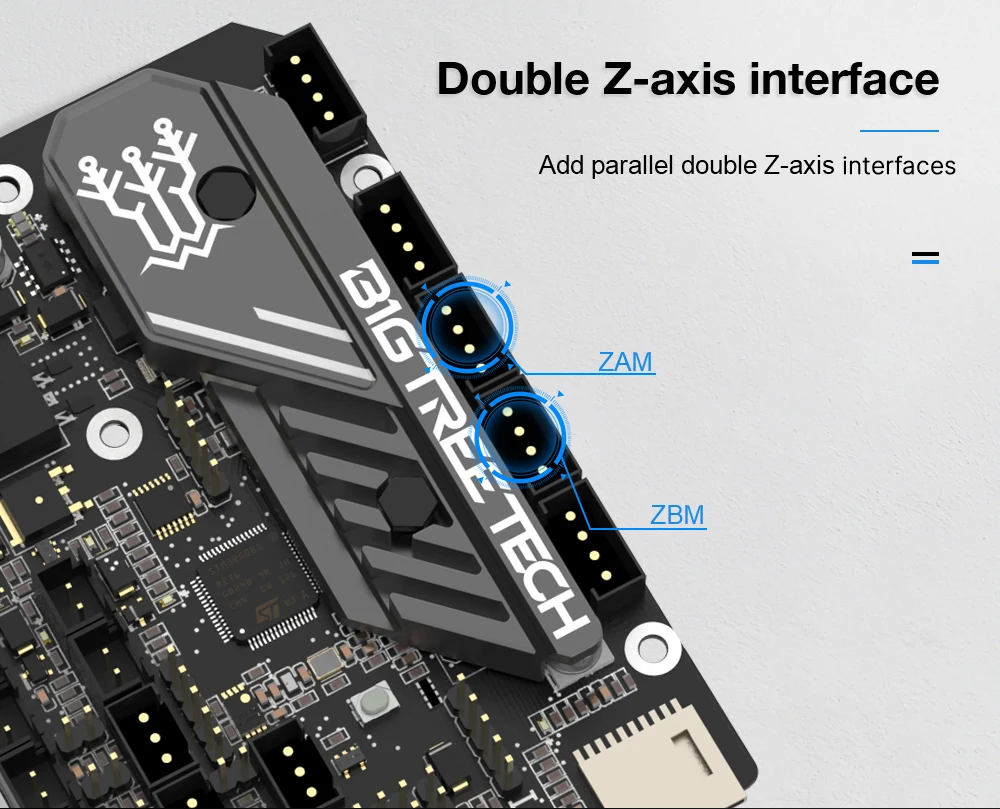

Double Z-axis interface: Add parallel double Z-axis interfaces
Extended functional interface: Filament detection,Power-off resume, Automatic shutdown,BL Touch,SDcard(off-line printing) ,RGB light
File Format: G-code
Hign-concerned Chemical: None
Industrial design: Y(heat sink)

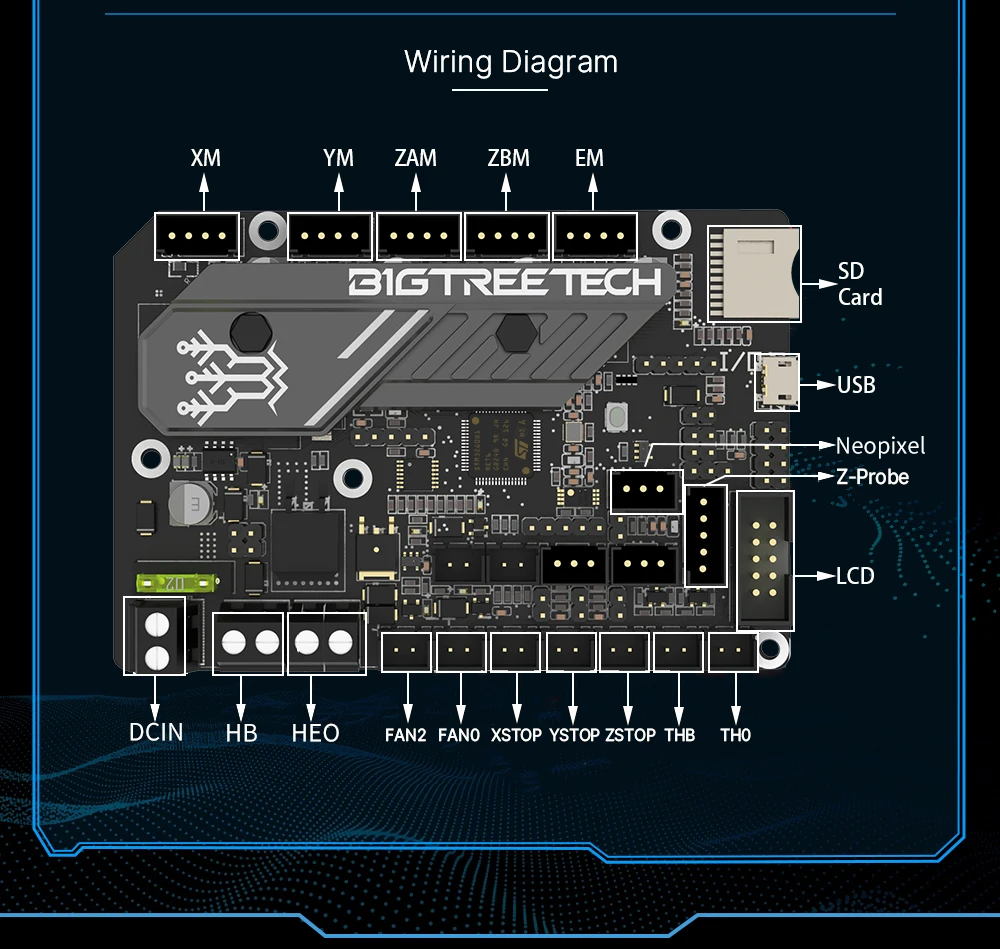

Interfaces Of Motor Driver: XM,YM,ZAM,ZBM,EM
Interfaces Of Temperature Sensor: TH0,THB,2-way 100K NTC(RTD)
Item Type: Motherboard
Logic Voltage: 3.3V

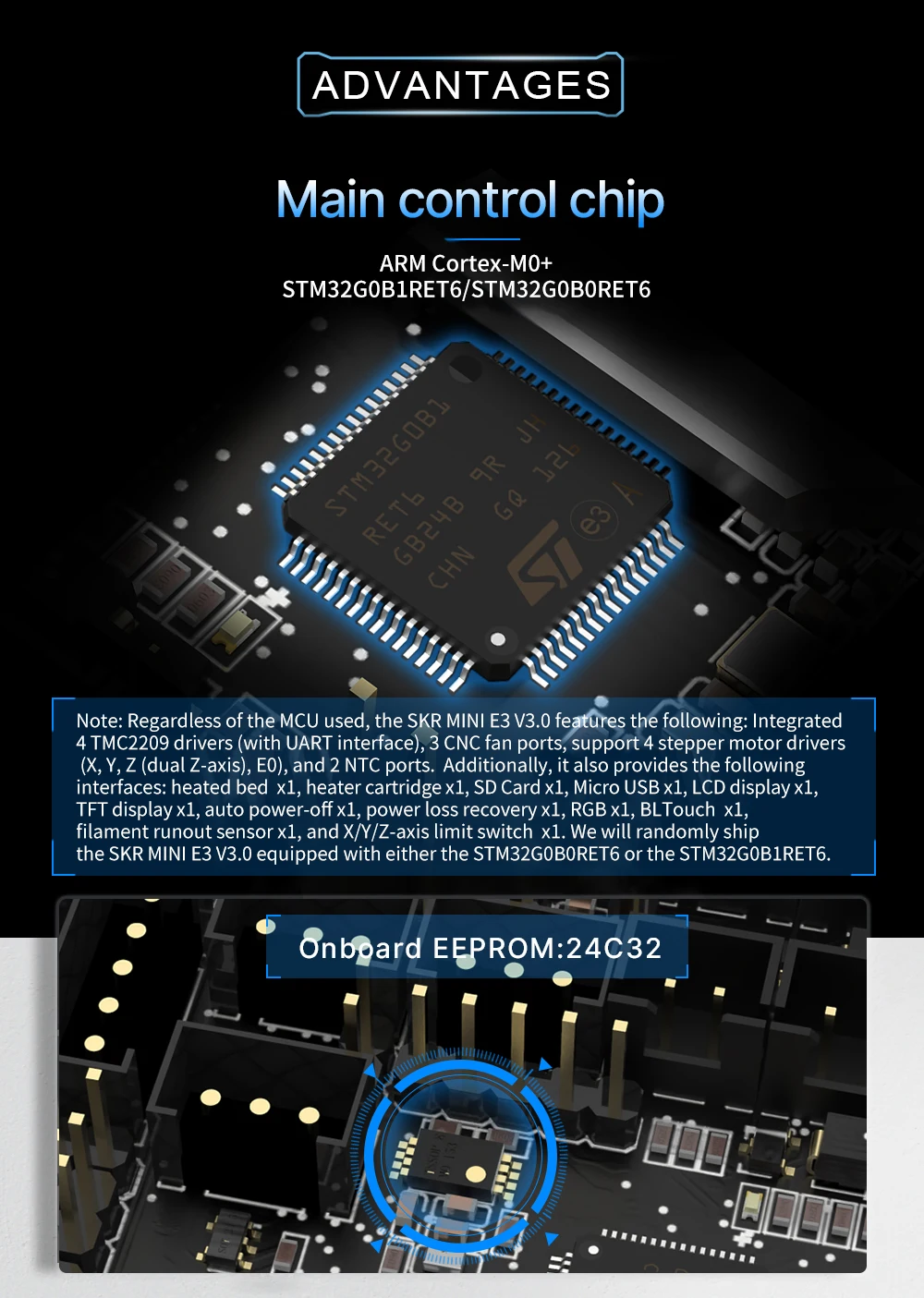

MCU: ARM Cortex-MO+STM32G0B1RET6/STM32G0B0RET6
Model Number: SKR MINI E3 V3.0
Motor Driver: UART mode of on-board TMC2209*4
Onboard: 5V power supply
Onboard EEPROM: 24C32

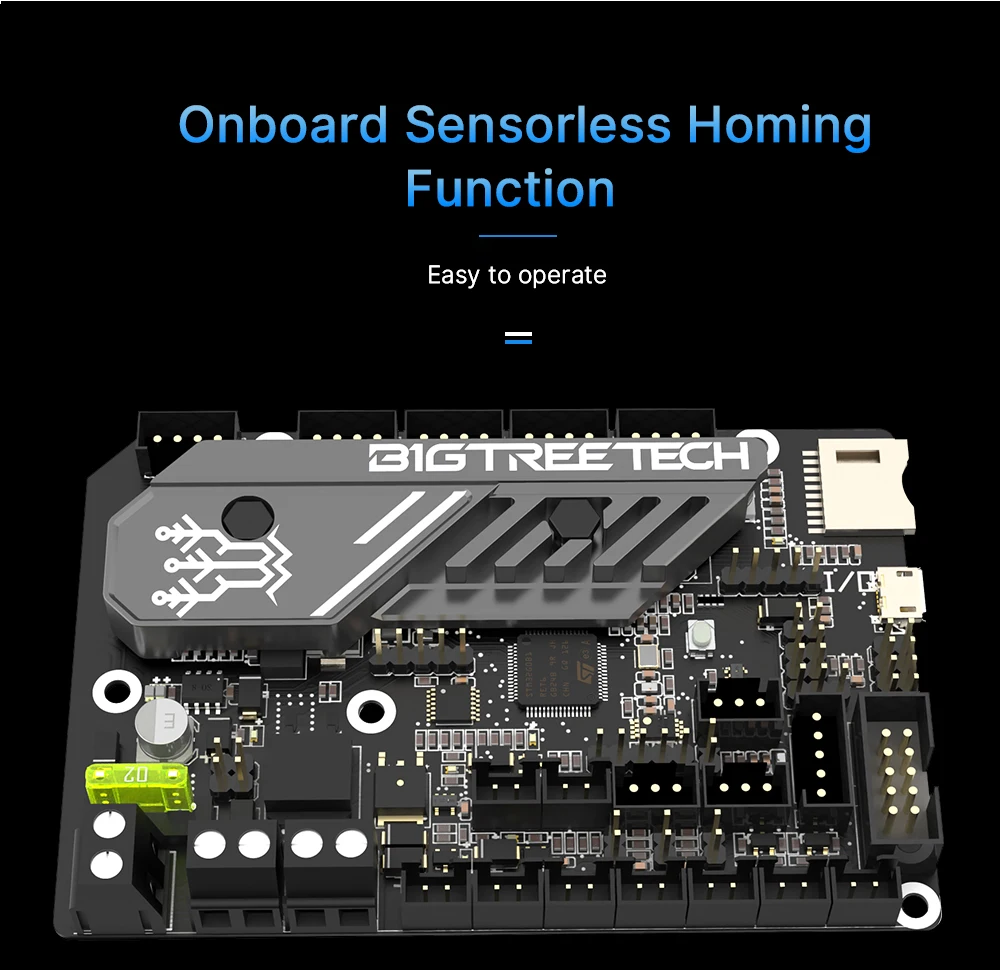

Onboard Sensorless Homing Function: Easy to operate
PC Communication Interface: USB Micro B type,easy to plug,communication baud rate 115200
PC communication interface: Micro USB
Power Input: DC12/24V

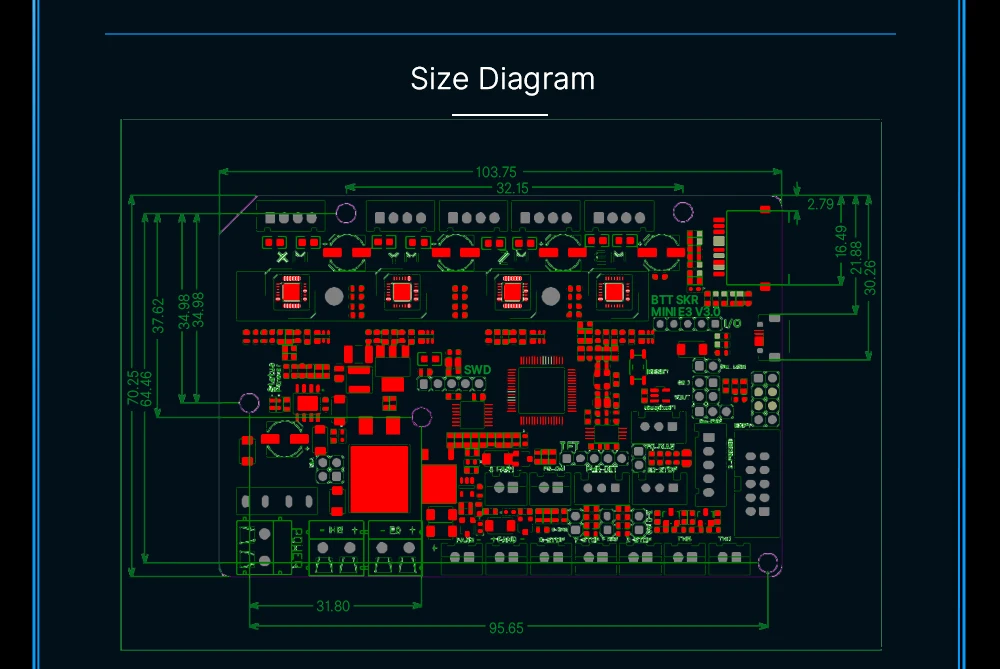

Product Size: 103.75*70.25mm
Recommended Software: Cura,Simplify 3D,Pronterface,Repetier-host,Makerware
SPl outlet power supply: 3.3V/5V
Support firmware: Marlin,Klipper

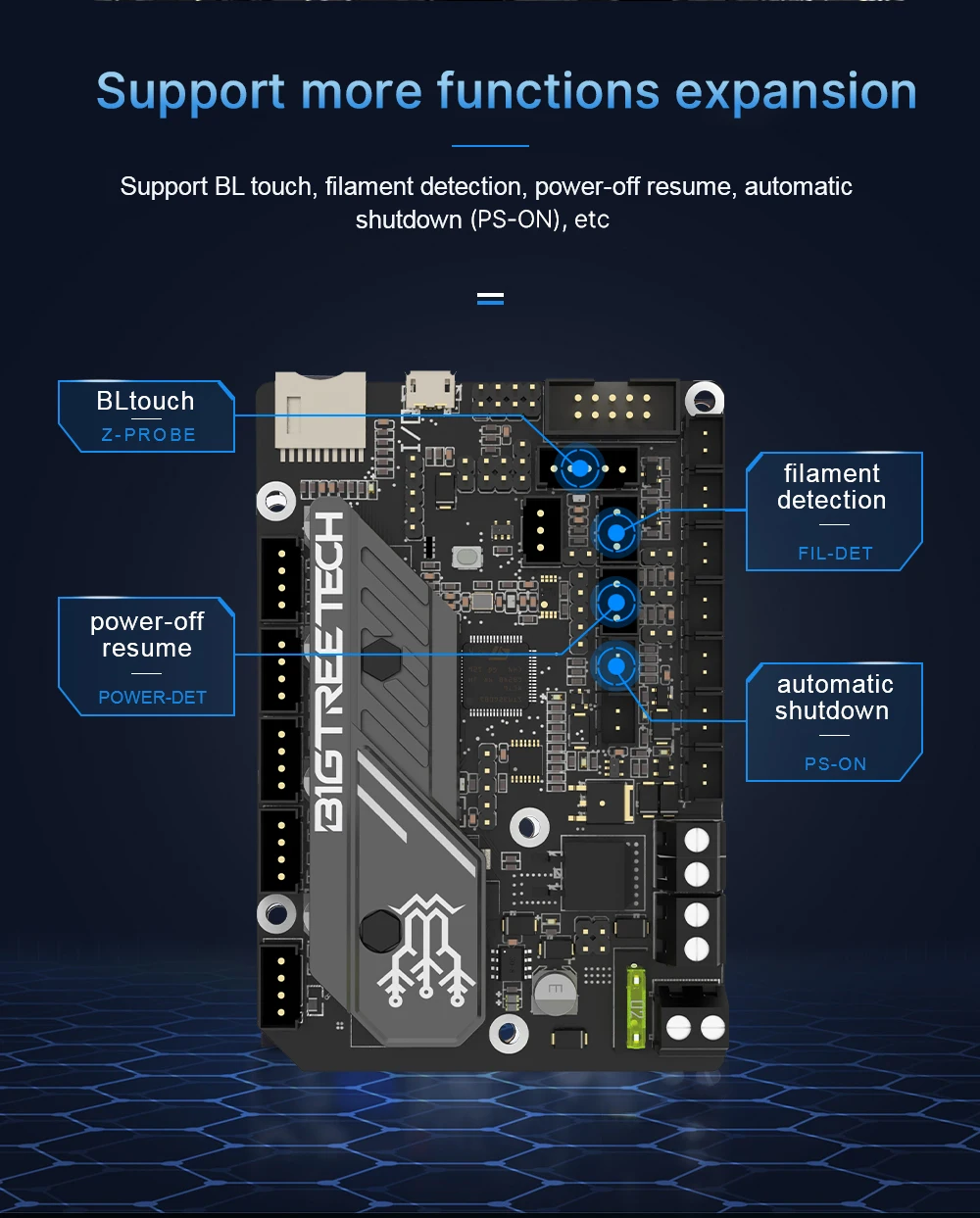

Support more functions expansion: Support BL touch,filament detection,power-off resume,automatic shutdown(PS-ON),etc

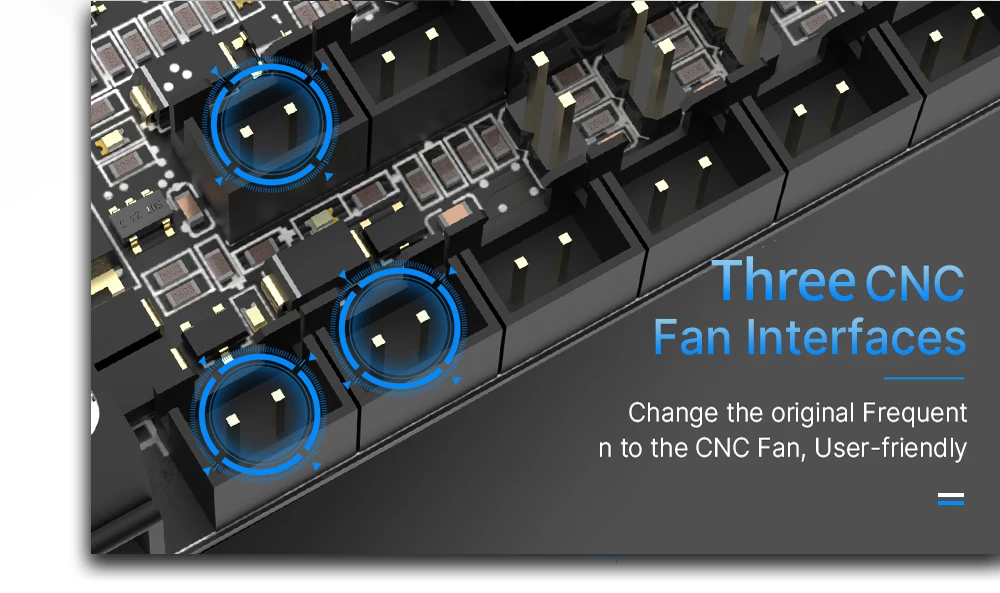

Three CNC Fan Interfaces: Change the original Frequent n to the CNC Fan,User-friendly

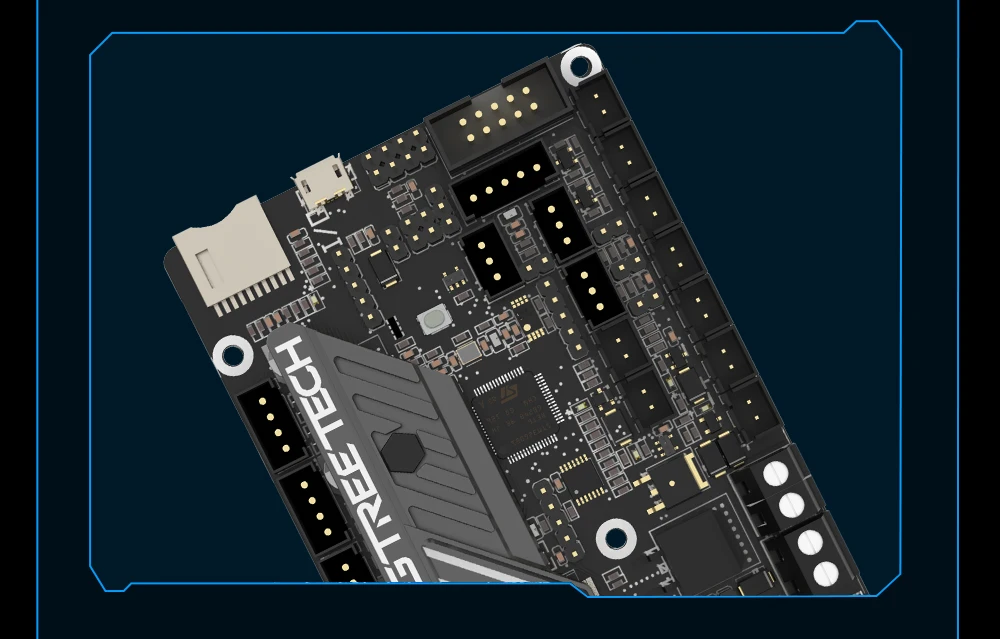

SKR MINI E3 V3.0 is a motherboard tailored specifically for Ender3 printers, a perfect replacement for original Ender 3 printer motherboards.
Increase SPI output port +3.3V power supply, external SPI sensor power supply voltage +3.3V and +5V optional.
PC communication USB interface is changed from Mini USB to Micro USB B, which is more adaptable.
Increase the power supply of the SPI output port, support the motherboard to directly supply power to the peripherals.
Onboard TMC2209 mute driver UART mode, support mute printing.

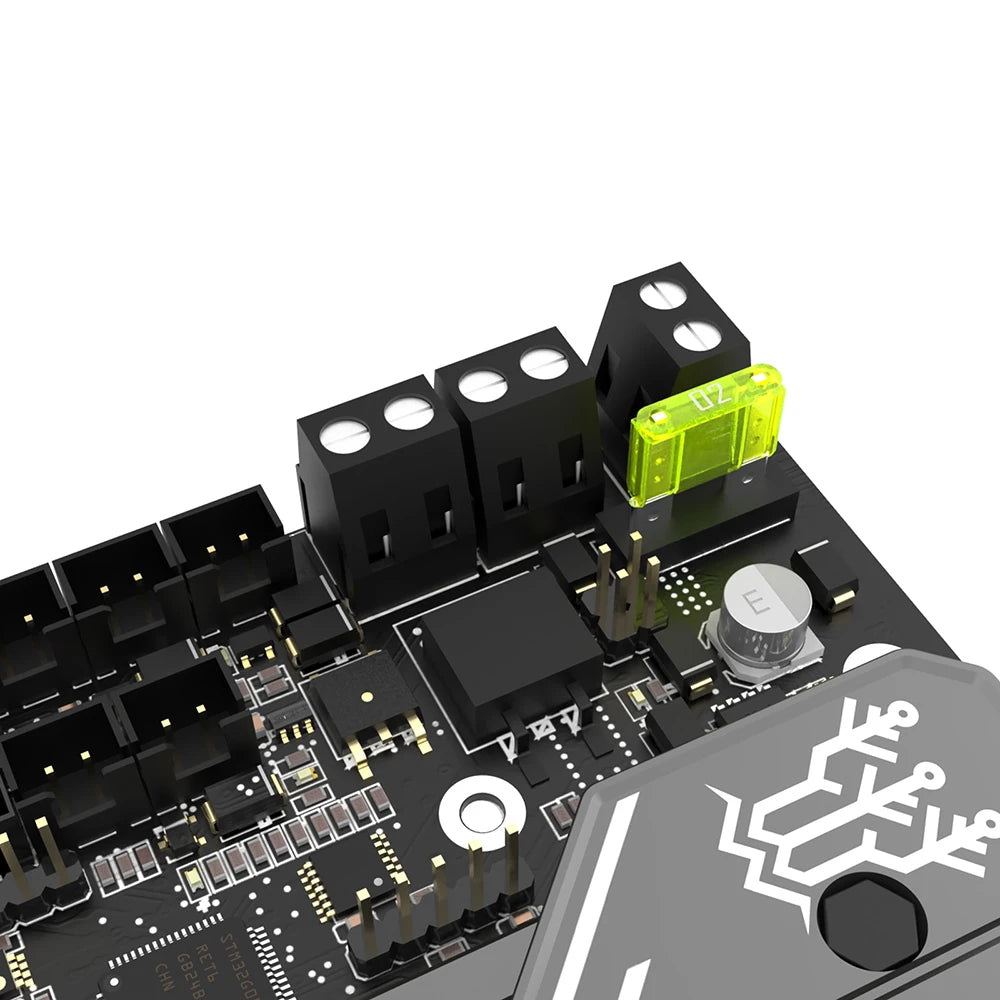

Increase the thermistor interface protection circuit to prevent burning of the main control chip.
Specification
Product Size:103.75*70.25mm
Board Layer:4
MCU:ARM Cortex-MO+STM32G0B1RET6/STM32G0B0RET6
Power Input:DC12/24V
Logic Voltage:3.3V
Motor Driver:UART mode of on-board TMC2209
Interfaces Of Motor Driver:XM,YM,ZAM,ZBM,EM
Interfaces Of Temperature Sensor:TH0,THB,2-way 100K NTC(RTD)
Display Screen:2.4-inch TFT,3.5-inch TFT,Ender3 original LCD12864 screen,etc.
PC Communication Interface:USB Micro B type,easy to plug,communication baud rate 115200
File Format:G-code
Recommended Software:Cura,Simplify 3D,Pronterface,Repetier-host,Makerware
Onboard EEPROM:24C32
Compatibility：Ender 3,Ender 3 Pro,Ender 5,CR 10
Support more functions expansion：Support BL touch,filament detection,power-off resume,automatic shutdown(PS-ON),etc
Add 5V power supply：5V power supply with BL touch,TFT and RGB interfaces
Onboard：5V power supply
Onboard Sensorless Homing Function：Easy to operate
- Double Z-axis interface：Add parallel double Z-axis interfaces

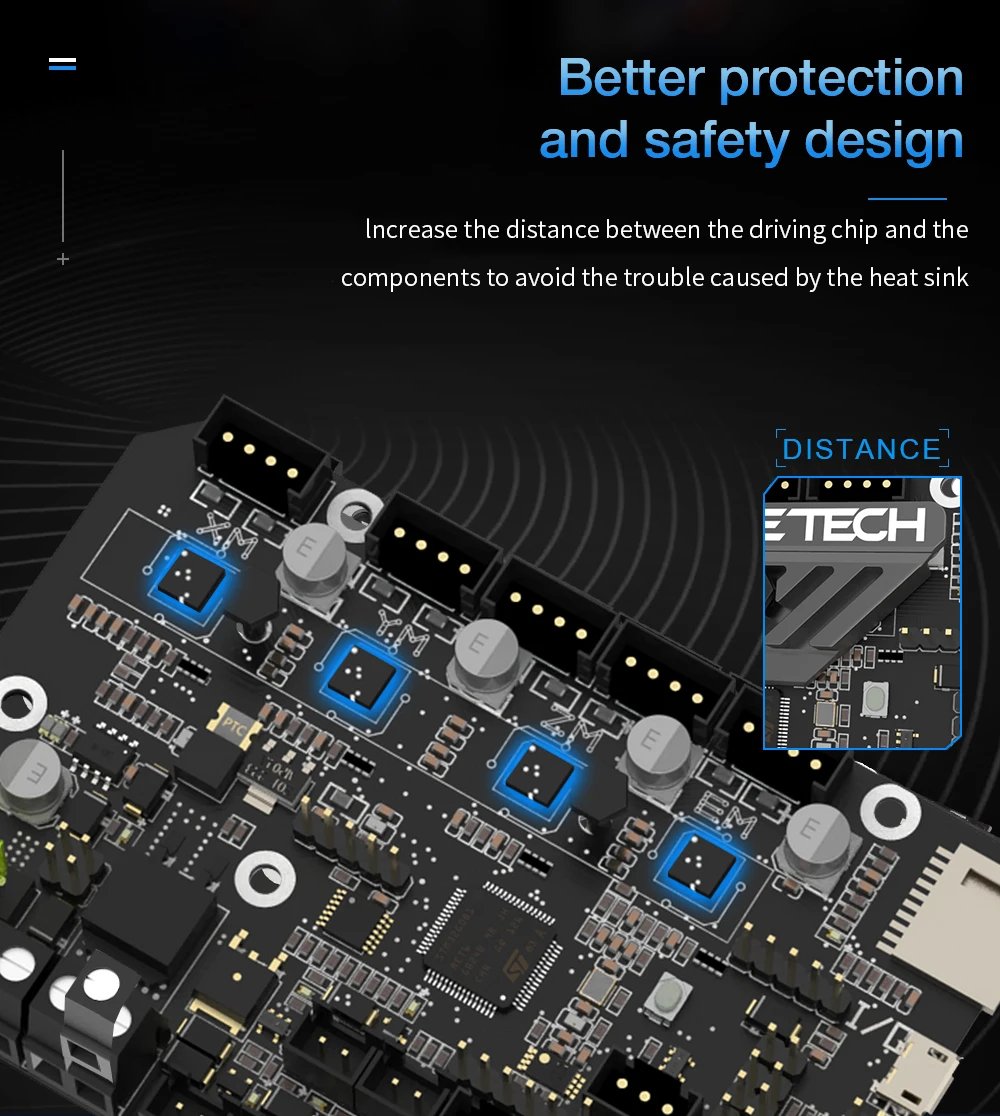

- Better protection and safety design：Increase the distance between the driving chip and the components to avoid the trouble caused by the heat sink
- BETTER THERMAL PERFORMANCE：Larger heat dissipation area Better heat dissipation
- Three CNC Fan Interfaces：Change the original Frequent n to the CNC Fan,User-friendly

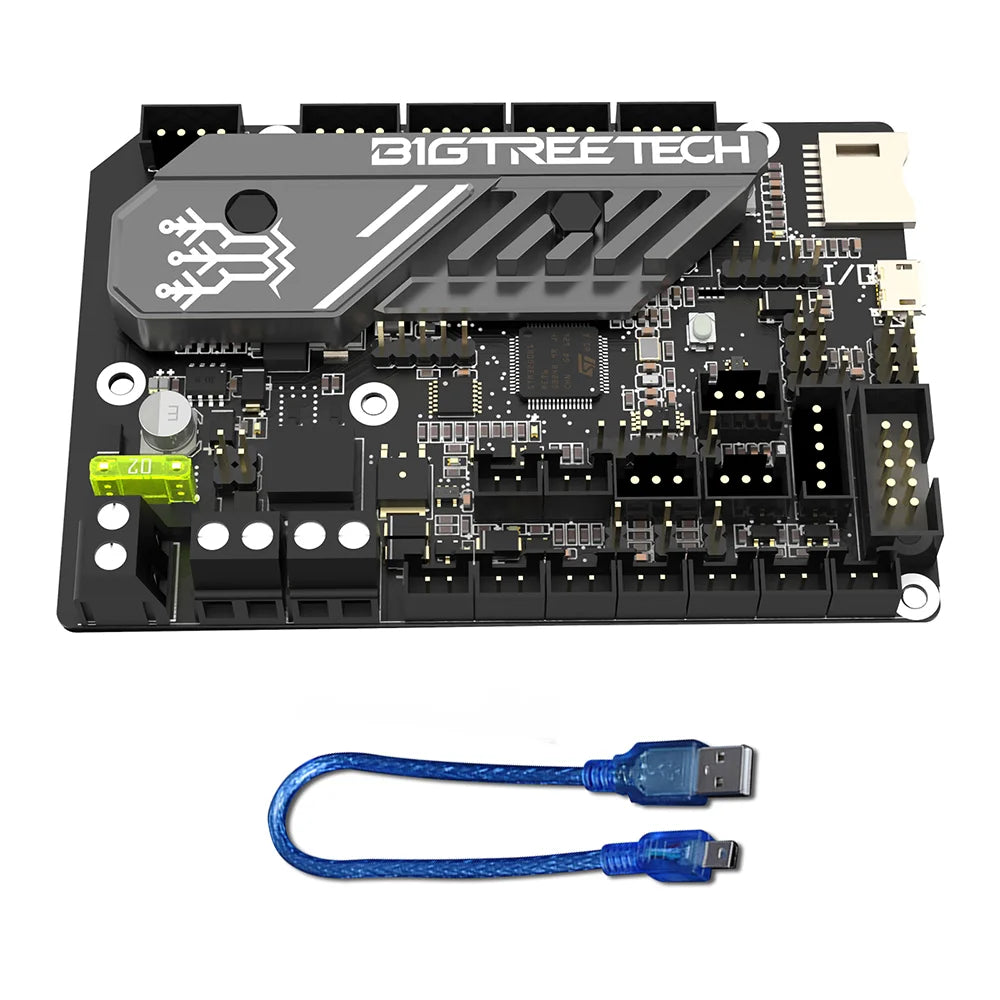

SKR MINI E3 V3.0 With cable(length 500mm)： Choose the option with cable to use directly with the original screen of ender3 v2
4 TMC2209 drivers(with UART interface),3 CNC fan ports,support 4 stepper motor drivers(X,Y,Z(dual Z-axis),EO),and 2 NTC ports.Additionally,it also provides the following interfaces:heated bed x1,heater cartridgex1,SD Cardx1,Micro USBx1,LCD displayx1,TFT displayx1,auto power-offx1,power loss recoveryx1,RGBx1,BLTouchx1,filament runout sensorxl,and X/Y/Z-axis limit switchx1.We will randomly ship the SKR MINI E3 V3.0 equipped with either the STM32G0B0RET6 or the STM32G0B1RET6.
The SD card/TF card in the picture on the detail page is only shown as a usage scenario, and the SD card/TF card is not included in the package.
